| Our Price | $160.00 | |
| MSRP | $299.00 | |

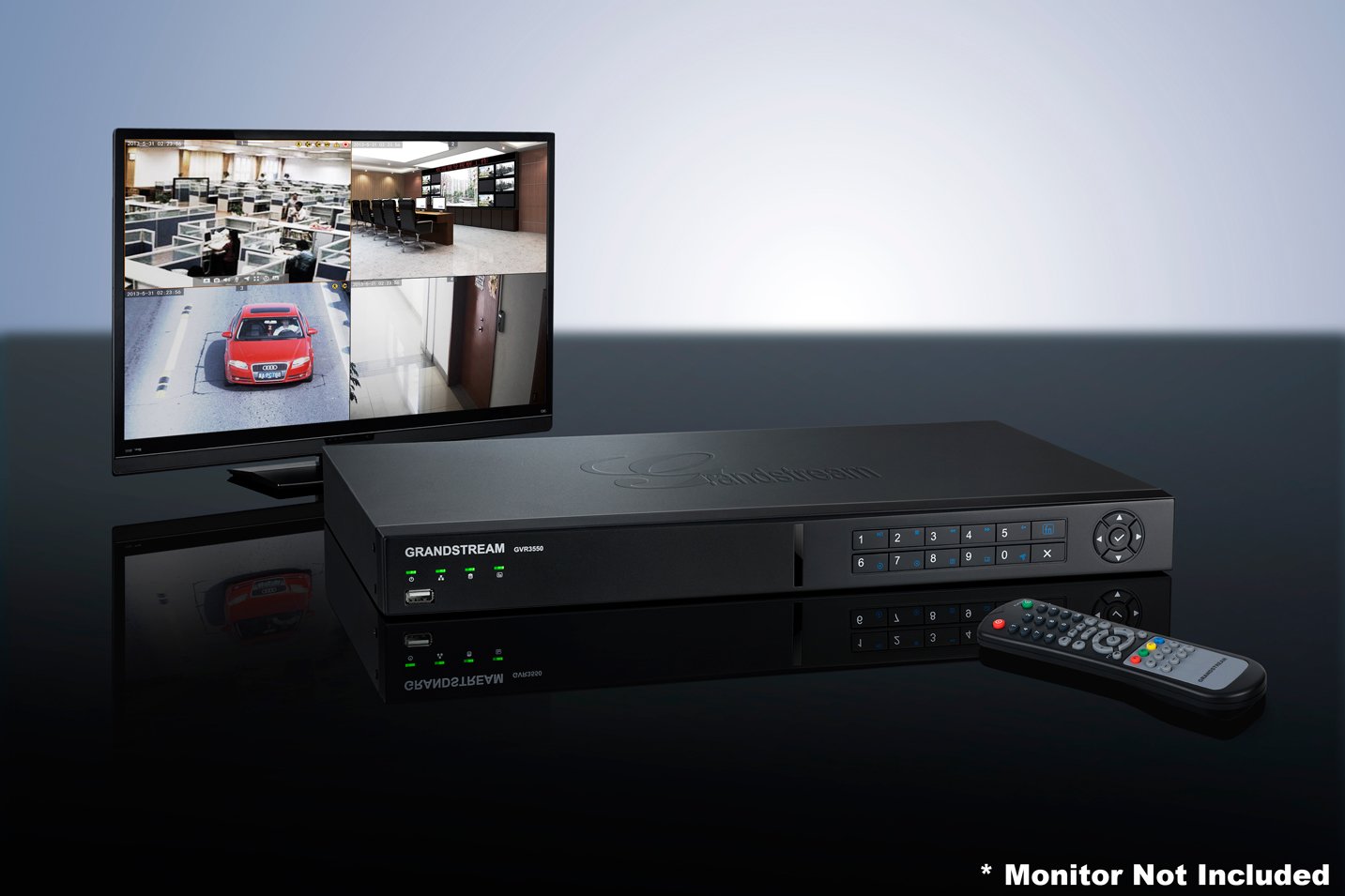

The GVR3550 is a powerful Network Video Recorder (NVR) that offers small to medium businesses (SMBs) and residential users a reliable and
easy-to-manage solution for video surveillance recording and monitoring. It provides video recording, indexing, searching and video storage management
for up to 24* IP video cameras to allow users to record and monitor their IP video surveillance network using one device. The GVR3550 supports all
Grandstream IP Video surveillance cameras and IP Video Encoders/Decoders in addition to all ONVIF compliant IP Cameras. Users can view the live feed
of up to 16 cameras simultaneously by connecting the GVR3550 to a TV or computer monitor or through remote access, and can save up to 16TB of video
files on the device by connecting up to 4 hard drives.
Feature Highlights
- Up to 24 channels (RAID 0 and 7,200rpm HDD) or 16 channels* (RAID 1 or 5,400rpm HDD) of 720p HD video/audio real-time recording
- Automatic discovery for IP cameras on the local network
- Fully customizable recording rules: time based, event based, manual or automatic
- Patent-pending storage system design that is resilient against power interruptions
- Grandstream’s innovative Direct I/O technology allows concurrent access to live view, searching and playback, PTZ and much more
- 1 HDMI and 1 VGA output for full HD local playback, easy-to-access USB, eSATA, alarm in and alarm out ports for future expansion and external integration
- 1 RJ45 10M/100M/1000M network interface
- Up to 4 SATA 3.5” internal hard drives with maximum 16TB storage and RAID 0 or RAID 1 configurations
- Automatic recording resume after power failure and automatic storage recycling
- Complete security features including role based access control, event/system logs and hard drive content encryption
Technical Specifications
| Video Recording | Up to 24 channels (RAID 0 and 7,200rpm HDD) or 16 channels* (RAID 1 or 5,400rpm HDD) of 720p (1280×720) or half the channel density using 1080p Full HD |
| Total Recording Rate | Up to 48 Mbps |
| Recording Modes | Continuous mode, record by schedule, event triggered or manual |
| Video Compression | H.264 baseline, main or high profile |
| Audio Recording | Synchronized audio and video recording |
| Audio Compression | G.711 (u-Law and a-Law) |
| Live View | Up to 16 channels of VGA, 4 channels of 720p, or 2 channels of 1080p via HDMI or VGA output |
| Event Trigger | Yes |
| Intelligent Search | Time & date, motion |
| Total Storage | Up to 16TB internally with encryp tion; additional storage available via external eSATA |
| RAID | RAID 0 or RAID 1 support |
| Storage Redundancy | Backup to USB |
| HDMI Interface | 1 x HDMI |
| VGA Interface | 1 x VGA |
| Network Interface | 1 x 10/100/1000Mbps auto-sensing RJ45 port |
| Line-In | 1 x RCA |
| Line-Out | 1 x RCA |
| Alarm-In | Terminal 16 inputs (NO/NC), Vin 2. 5V~12V; Vin 2.5mA~30mA |
| Alarm-Out | Terminal 2 outputs (Relay), 0.5A at 125 VAC; 2A at 30 VDC |
| UPS | UPS Management (pending) |
| USB Interfaces | 2 x USB 2.0 host ports |
| eSATA | 1 x eSATA port |
| LED Indicators | Power, LAN Link/Activity, Hard Drive Activity, fn |
| Input | 1 IR Remote Control; optional USB m o use and keyboard |
| RTC | Yes |
| Internal HDD | Up to 4 3.5” SATA hard drives with maximum 16TB storage (HDD n ot included) |
| QoS | Layer 2 Qo S (802.1Q, 802.1p) (Layer 2 QoS pending) and Layer 3 QoS (ToS, DiffServ, MPLS) coming soon |
| Network Protocols | TCP/IP/UDP, RTP/RTCP/RTSP, HTTP/HTTPS, ARP, ICMP, DNS/DDNS, DHCP (client and server), NTP (client and server), SSH, PPPoE, LLDP (pending), 802.1X, ONVIF 2.2 |
| IP Cameras Supported | Grandstream GXV36xx cameras, GXV35xx encoders/decoders, & 3rd party ONVIF compliant cameras |
| Provisioning | HTTP, HTTPS, ONVIF |
| Security | HTTPS, 802.1x (pending), SSH |
| Management | Syslog, Web Browser, SSH, GSurf Pro (pending) |
| Universal Power Supply | Input:100~240V 50/60Hz Output:12V/5A 60W |
| Environmental | Operation: 0°C to 50°C Storage: -20°C to 60°C (HDDs not included) Humidity: 10% to 90% non-condensing |
| Physical | 440mm (W) x 343.5mm (L) x 44mm (H) Package weight: 4052.5g |
| Mounting | 1U rack mount with front brackets |
| Compliance | FCC: Part 15, (CFR 47) Class B CE: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 60950 RCM: AS/NZS CISPR22, AS/NZS CISPR24, AS/NZS 60950 Comply with R & TTE, RoHS & WEEE |
* Monitor not included
