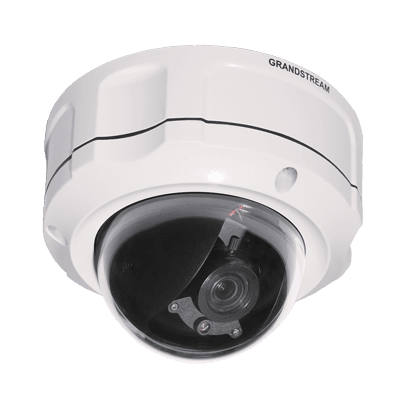

GXV3662-(1)Vandal-Resistant & Weather-Proof HD IP Camera

GXV3662 series is a powerful vandal-resistant and weather-proof dome IP camera of outstanding performance and quality. Its advanced ISP (Image Sensor Processor) powered with state-of-the-art auto-exposure/auto-white-balance algorithm and a high quality lens, ensures high-fidelity video quality that matches digital still camera color grade in a wide range of light environments. It features cutting edge H.264 real-time video compression with excellent image clarity, industry leading SIP/VoIP for 2-way audio and video streaming to mobile phones and video phones, integrated PoE, IR_CUT switch for color or black & white operation mode, and advanced security protection. The GXV3662 series can be managed with GSurf (Grandstream’s intuitive FREE video management software that controls up to 36 cameras simultaneously) as well as other ONVIF compliant video management systems. It also offers an advanced and flexible HTTP API for easy integration with other monitoring systems. The GXV3662 series is a powerful network camera for professional surveillance application in outdoor environments.

Feature Highlights

  • High quality 3.1 Megapixel CMOS sensor and lens
  • Advanced multi-streaming-rate real-time H.264, Motion JPEG at 720p or 1080p resolutions
  • Alarm input/output, audio input/output
  • SD slot for local storage, 24MB pre/post event recording buffer
  • Support Motion Detection and Notification on PC Client
  • Support both variable bit rate and variable frame rate
  • Built-in high performance streaming server to allow at least 4 simultaneous viewers
  • Embedded video analytics and SIP/VoIP support
  • Integrated Power-over-Ethernet (802.3af)
  • Full ONVIF conformance with extensions in the near future.

Technical Specifications

Video Compression H.264, MJPEG
Image Sensor Resolution 1/3″, 3.1 Megapixel CMOS, 2048H X 1536V
Lens Type 1/3″, 3.3-12mm, F1.6~F3.2, DC-Iris; Manual focus: 50cm ~ infinity; H: 89.8°~23.9°; V: 63.6°~17.9°
Operation Mode Light Sensor, mechanical IR Cut filter, color/black & white mode
Minimum Illumination 0.05Lux
Responsivity 1.9V/lux-sec (550nm)
Pixel Dynamic Range Wide dynamic range of 100dB with SNRMAX 39dB
Supported Maximum Video Resolution and Frame Rate 2048×1536 (15fps); 1920×1080 (30fps)
Video Bit Rate 32 Kbps ~ 8 Mbps, multi-rate for preview & recording
Audio Input & Output Line-In, Line-Out
Alarm Input & Output Input: Voltage In < 15V; Output: 125VAC/0.5A, 30VDC/2A, Normal Open
Audio Compression G.711a/u, AAC
Iris Control DC-Iris
Embedded Analytics Motion detection (up to 16 target areas)
Pre/post alarm Buffer 24MB
Snapshots Triggered upon events, send via email/FTP, and stored in SD card
Network interface 10M/100M auto-sensing, RJ45
Network Protocol TCP/UDP/IP, RTP,RTCP, RTSP, DHCP, DDNS, HTTP, HTTPS, SMTP, FTP, NTP
Power over Ethernet (PoE) IEEE 802.3af Class 0
Peripheral Ports Internal SDHC 2.0 socket to allow local storage
SIP/VoIP Support Yes
Dimensions (D x L) 153mm (D) x 115mm (H)
Weight 1.19kg
Temperature/Humidity -30°C ~ +50°C (-22°F ~ +122°F) for DC and PoE, with heater & fanHumidity 10~90% RH (non-condensing)
Power Adapter Output: 12VDC/1A; Input: 100~240VAC, 50~60Hz
Casing Vandal resistant, weather-proof with IP66, attachable to mounting kit of 1.875″ diameter
Compliance FCC, CE, C-Tick, IP66
