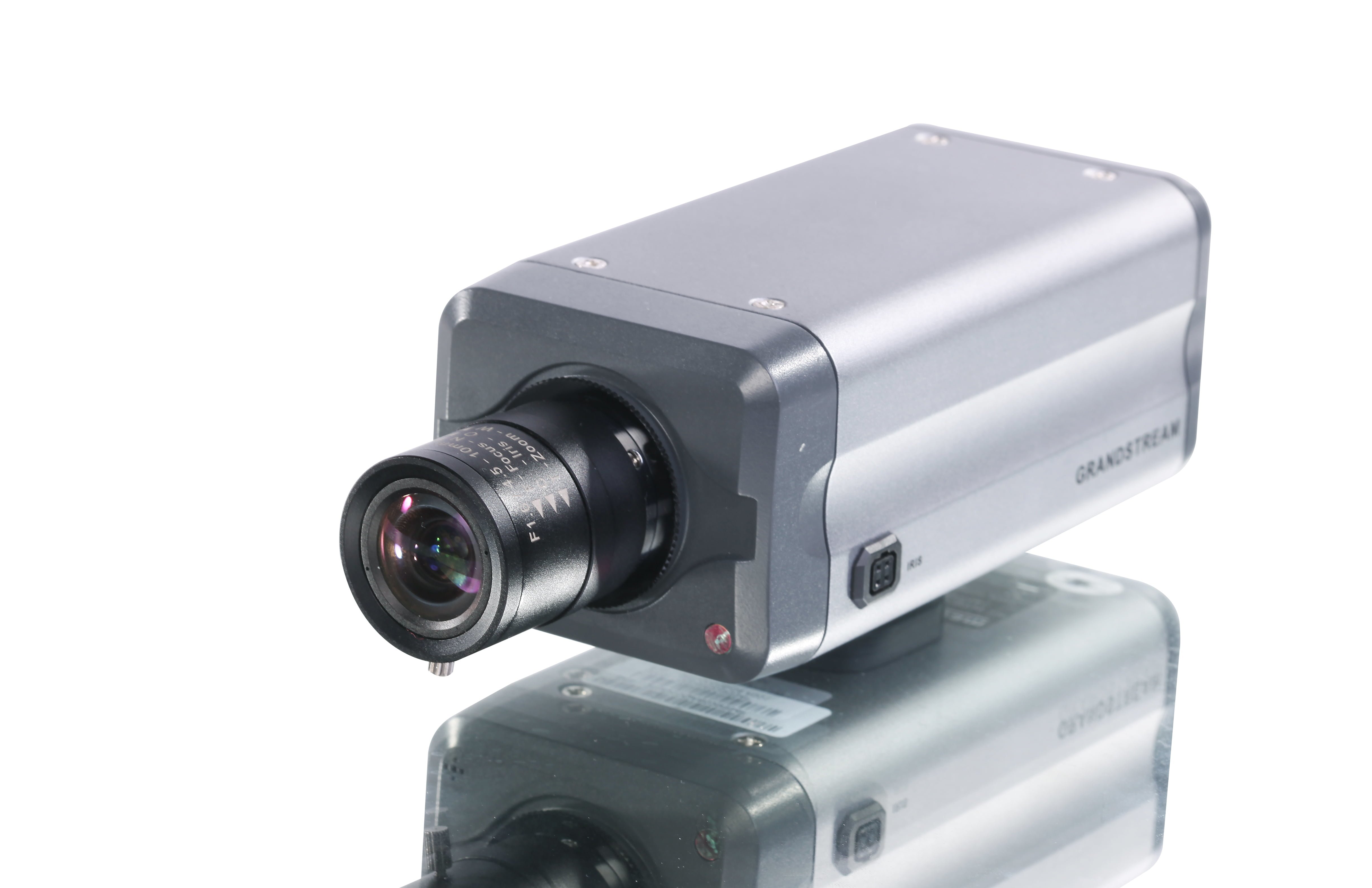

GXV3651_FHD is an advanced High Definition IP camera of power and innovation. It features cutting edge H.264 real-time (30fps) video compression at 1080p resolution with excellent image clarity, industry leading SIP/VoIP for full duplex 2-way audio and video streaming to mobile phones and video phones, integrated PoE, integrated IRCUT and light sensor for enhanced video performance under low-light or night condition, embedded image sensor processing technology and video analytics, large pre/post event recording buffer, and advanced security protection. Its unique incorporation of the most comprehensive peripheral support for alarm control, local storage, and wireless network connection, creates sophisticated and best-in-class control flexibility and scalability. The GSB3651_FHD can be managed with GSurf, Grandstream’s advanced and intuitive video management software that controls up to 36 cameras simultaneously. The GXV3651_FHD is a powerful network camera for professional surveillance environments.
Feature Highlights
- High quality 5 Megapixels CMOS sensor and lens to ensure razor sharp picture quality
- Advanced multi-streaming-rate real-time H.264, Motion JPEG at 1080p resolution and 30fps
- Alarm input & output, audio input & output, RS485
- 24MB pre/post event recording buffer
- SD card slot and USB2.0 for storage/wireless dongle
- Integrated Power-over-Ethernet (802.3af)
- Integrated IRCUT and light sensor for enhanced video quality under low light or night condition
- Embeded Image Sensor Processing (ISP) technology and video analytics, SIP/VoIP support for full duplex two-way audio as well as video streaming to mobile phones and video phones
- Built-in high performance streaming server to allow up to 3 simultaneous 1080p viewers, or 16 simultaneous D1 viewers or 25 CIF viewers
Technical Specifications
| Video Compression |
H.264, MJPEG |
| Image Sensor |
1/2.5″, 5-Megapixel CMOS, 2592×1944 (pixels), exceptionally low noise levels and low-light sensitivity for superior video quality at very high resolution (1080p) |
| Lens Type |
1/2″, 4.5-10mm, Manual-Iris, CS |
| Day & Night |
Electronic, with integrated IR_CUT and light sensor |
| Responsivity |
1.4V/lux-sec (550nm) |
| Max Video Resolution |
Full HD (16:9): 1920x1080p |
| Pixel Dynamic Range |
70.1dB, with SNRMAX 38.1dB (full resolution) |
| Max Frame Rate in Max Resolution |
30fps |
| Video Bit Rate |
32 Kbps – 8 Mbps |
| Video Output |
BNC, Voltage 1.0V PP, Resistance 75 Ohm |
| Audio Input |
3.5mm LINE-IN, built-in Microphone |
| Audio Output |
3.5mm LINE-OUT |
| Alarm Input |
Yes – One Interface, Normal Open |
| Alarm Output |
yes – One Interface, 125VAC/0.5A or 30VAC/2A |
| Audio Compression |
G.711a/u |
| Serial Ports |
RS485 |
| Iris Control |
Manual Iris (default lens), optional auto-iris lens |
| Embedded Analytics |
Motion detection (up to 16 target areas), video loss (pending) |
| Pre/Post Alarm Buffer |
24MB |
| Snapshots |
Trigger upon events, send via email/FTP |
| Multi-streaming-rate for Preview & Recording |
Yes |
| Security |
Video watermark (pending), HTTPS, Password |
| Network Port |
10M/100M auto sensing, RJ45 |
| Network Protocol |
TCP/UDP/IP, RTP/RTCP, RTSP, DHCP, DDNS, HTTP, HTTPS, SMTP, FTP, NTP, SIP, DNS, Telnet, TFTP, ARP, ICMP, IGMP |
| Power over Ethernet (PoE) |
Standard, IEEE 802.3af Class 0 |
| Peripheral Ports |
SDHC 2.0, USB 2.0 |
| SIP/VoIP Support |
Yes |
| Dimensions (L x W x H) |
152mm x 68mm x 64mm (Lens not included) |
| Weight |
0.51kg (Lens not included) |
| Temperature/Humidity |
0°C – 45°C (32°F – 113°F); Humidity 10-90% (non-condensing) |
| Power Adapter |
Output: 12VDC/1A; Input: 100-240VAC, 50-60Hz |
| Regulatory Compliance |
FCC Part 15, Subpart B Class B; CE EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 60950-1; C-tick AS/NZS CISPR 22, CISPR 24 |
GXV3651_FHD is an advanced High Definition IP camera of power and innovation. It features cutting edge H.264 real-time (30fps) video compression at 1080p resolution with excellent image clarity, industry leading SIP/VoIP for full duplex 2-way audio and video streaming to mobile phones and video phones, integrated PoE, integrated IRCUT and light sensor for enhanced video performance under low-light or night condition, embedded image sensor processing technology and video analytics, large pre/post event recording buffer, and advanced security protection. Its unique incorporation of the most comprehensive peripheral support for alarm control, local storage, and wireless network connection, creates sophisticated and best-in-class control flexibility and scalability. The GSB3651_FHD can be managed with GSurf, Grandstream’s advanced and intuitive video management software that controls up to 36 cameras simultaneously. The GXV3651_FHD is a powerful network camera for professional surveillance environments.
