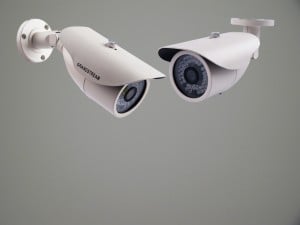

gxv3672_white_datasheet_pictureOutdoor Day/Night HD IP Camera

The GXV3672 series are powerful weatherproof Infrared HD IP cameras of outstanding performance and quality. Their advanced ISP (Image Sensor Processor) powered with state-of-the-art auto-exposure/auto-white-balance algorithm and a high quality lens, ensures high fidelity video quality that matches digital still camera color grade in a wide range of light environments. They feature cutting edge H.264 real-time video compression with excellent image clarity, industry leading SIP/VoIP for 2-way audio and video streaming to mobile phones and video phones, integrated PoE, IR-CUT for day/night mode, and advanced security protection. The GXV3672 series can be managed with GSurf_Pro (Grandstream’s intuitive FREE video management software that controls up to 36 cameras simultaneously) as well as other ONVIF compliant video management systems. It also offers an advanced and flexible HTTP API for easy integration with other monitoring systems. The GXV3672 series is a powerful network camera for professional surveillance applications in outdoor environments.

Feature Highlights

  • High quality 3.1 Megapixel CMOS sensor and HD lens
  • Advanced multi-streaming rate real-time H.264, Motion JPEG at 720p and 1080p resolutions in full frame rate
  • Pre/post event recording buffer
  • Support Motion Detection and Notification on PC client
  • Support both variable bit rate and variable frame rate
  • Built-in high performance streaming server to allow multiple simultaneous viewers
  • Embedded video analytics and SIP/VoIP/IMS support
  • Integrated Power-over-Ethernet (802.3af)
  • Full ONVIF conformance with extensions in the near future

Technical Specifications

Video Compression H.264, MJPEG
Image Sensor Resolution 1/3″, 3.1 Megapixel
Progressive Scan CMOS, 2048H x 1536V
Image Sensor Sensitivity Day/Night Mode (exceptional low noise level, low light sensitivity)
Shutter: 1/10000 ~ 1/30 second
Focal Length 3.6mm
Aperture F1.8
Field Angle (FOV) 100.2°(D) x 77°(H) x 54°(V)
IR Cut Filter Yes, Mechanical
Day & Night Mode IR LED covering up to 10 meters
Minimum Illumination 0.05 Lux, 0 Lux with IR
Responsivity 1.9V/Lux-sec (550nm)
Supported Maximum Video
Resolution and Frame Rate
2048×1536 (15fps)
1920×1080 (30fps)
Video Bit Rate 32 Kbps ~ 8Mbps, Multi-rate for Preview & Recording
Audio Compression G.711a/u, AAC
Embedded Analytics Motion detection (up to 16 target areas)
Pre/post alarm Buffer 3MB
Snapshots Triggered upon events, send via email/FTP
SIP/VoIP Support Yes
Power over Ethernet (PoE) IEEE 802.3af Class 0
External Cable Connection Network: RJ45, 10M/100M Auto-Sensing
Power Input
Dimensions (D x L) 94mm (D) x 230mm (L)
Weight 0.52kg
Temperature/Humidity Operating: -20°C ~ 45°C (-4°F ~ 113°F)
10 ~ 90%, RH(non-condensing)
Storage: -30°C ~ 60°C (-22°F ~ 140°F)
Power Adapter Output: 12VDC/1A; Input: 100~240VAC, 50~60Hz
Casing IP66 Compliant Weather-Proof Metal Case
Compliance FCC Part 15,Subpart B Class B; EN 55022 Class B, EN 61000-3-2,
EN 61000-3-3, EN 55024, EN 60950-1; C-tick AS/NZS CISPR 22
