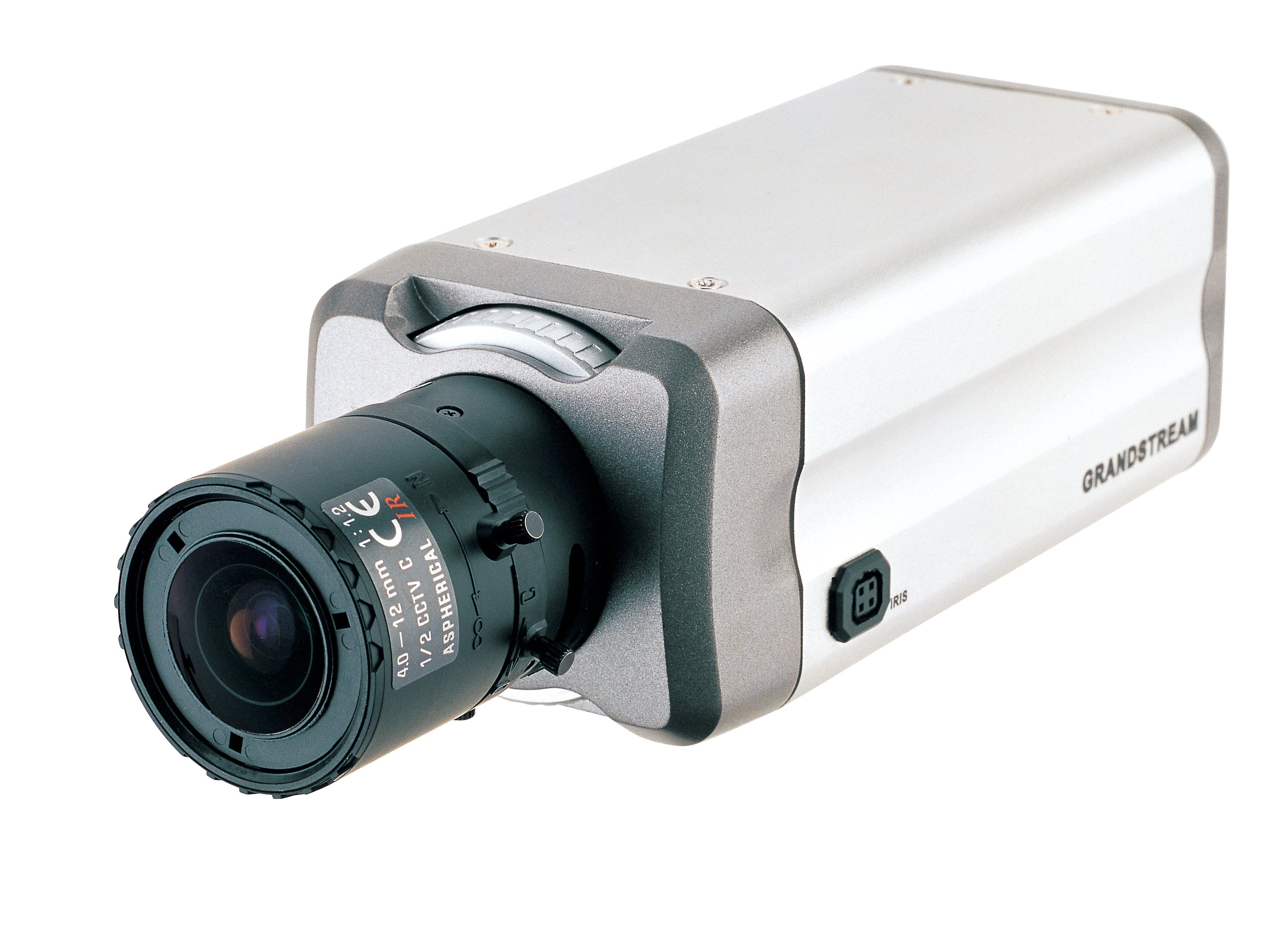

GXV3601_HD is a next generation High Definition (720P) IP camera of extraordinary power and innovation. It features cutting edge H.264 real-time video compression (720P resolution) with excellent image clarity, industry leading SIP/VoIP for full duplex 2-way audio and video streaming, integrated PoE, embedded analytics, large pre-/post-event recording buffer, and advanced security protection. It supports the most comprehensive peripheral interfaces for alarm control, local storage expansion, and wireless network connection, offering sophisticated and best-in-class control flexibility and scalability. The GXV3601_HD can be managed with GSurf, Grandstream’s FREE video management software.
Feature Highlights
- High resolution 2 Megapixels CMOS sensor and premium lens to ensure high fidelity picture quality
- Support advanced real-time H.264 (with multi-streaming-rate) and Motion JPEG at 720P resolution, variable bit rate & frame rate, and video watermark
- Support sensor alarm input, relay output, USB, SD, integrated Power-over-Ethernet (802.3af), and 8MB pre-/post-event recording buffer
- Built-in high performance streaming server to allow 6+ simultaneous HD viewers
- Embedded video analytics, SIP/VoIP support for full duplex two-way audio as well as video streaming to mobile phones and video phones
- Support e-PTZ function and support IE and Firefox for network preview
Technical Specifications
| Model |
GXV3601_HD |
| Video Compression |
H.264, JPEG, Motion JPEG |
| Image Sensor |
Aptina 2-Megapixel 1/3.2″ CMOS sensor, 1600H x 1200V, with low noise levels and low-light sensitivity |
| Lens Type |
1/3″, 3.5-8mm, F1.4, Mega Manual-Iris, CS |
| Day & Night |
No |
| Minimum Illumination (Lux) |
0.5Lux at F1.2 |
| Sensitivity |
1.0V/lux-sec (550nm) |
| Max Video Resolution |
1600 x 1200 |
| Pixel Dynamic Range |
71dB, with SNRMAX 41dB |
| Max Frame Rate in Max Resolution |
20fps for 1600×900, 25fps for 1280×720, 30fps for 800×450 |
| Video Bit Rate |
32 Kbps – 4 Mbps, adjustable (8 Mbps maximum) |
| Video Output |
N/A |
| Audio Input |
3.5mm LINE-IN, built-in microphone |
| Audio Output |
3.5mm LINE-OUT |
| Alarm Input |
Yes – 1, Normal Open |
| Alarm Output |
Yes – 1, 125VAC/0.5A, 30VAC/2A |
| Audio Compression |
G.711, G.726 |
| Serial Ports |
RS485 |
| Iris Control |
Manual Iris |
| Embedded Analytics |
Motion detection (up to 16 target areas), video loss (pending) |
| Pre-/post-alarm Buffer |
24MB |
| Snapshots |
Triggered upon events, sent via email/FTP |
| Multi-streaming-rate for Preview & Recording |
Yes |
| Security |
Video watermark, HTTPS, Password |
| Network Port |
10M/100M auto sensing, RJ45 |
| Network Protocol |
TCP/UDP/IP, RTP/RTCP, RTSP, DHCP, PPPoE, DDNS, HTTP, HTTPS |
| Power over Ethernet (PoE) |
Yes, IEEE 802.3af Class 3 |
| Peripheral Ports |
SD 2.0, USB 2.0 |
| SIP/VoIP Support |
yes |
| Dimension (L x W x H) |
155mm x 68mm x 64mm |
| Weight |
0.6kg |
| Temperature/Humidity |
0°C – 45°C (32°F – 133°F) Humidity 10-90% RH (non-condensing) |
| Power Adapter |
Output: 12VDC/1A; Input: 100-240VAC, 50-60Hz |
| Compliance |
FCC Part 15, Subpart B Class B; EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 60950-1; C-tick AS/NZS CISPR 22, CISPR 24 |
